Project
A high-output PETG sheet extrusion line delivering 850 kg/h with a 1250 mm sheet width — engineered with an 85 mm parallel twin-screw extruder plus a 75 mm single-screw extruder for superior plasticizing, stable gauge control and excellent surface quality.
2026 PETG Sheet Extrusion Line Project in China
Project Category: PETG Sheet Extrusion Line
Project Overview

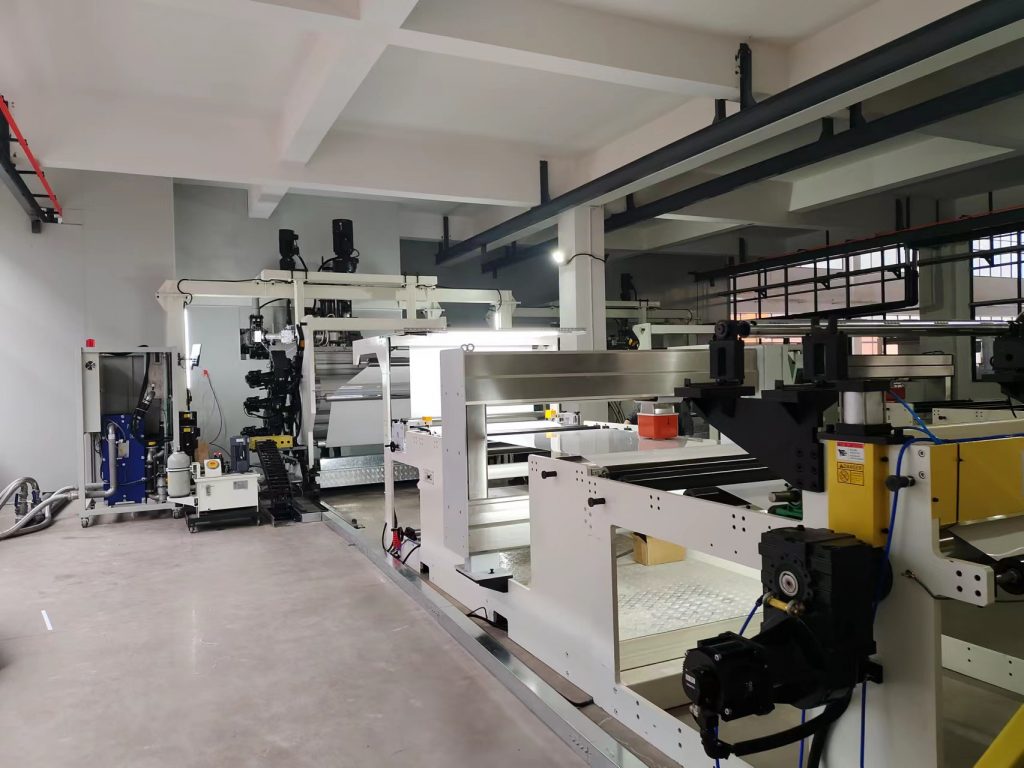

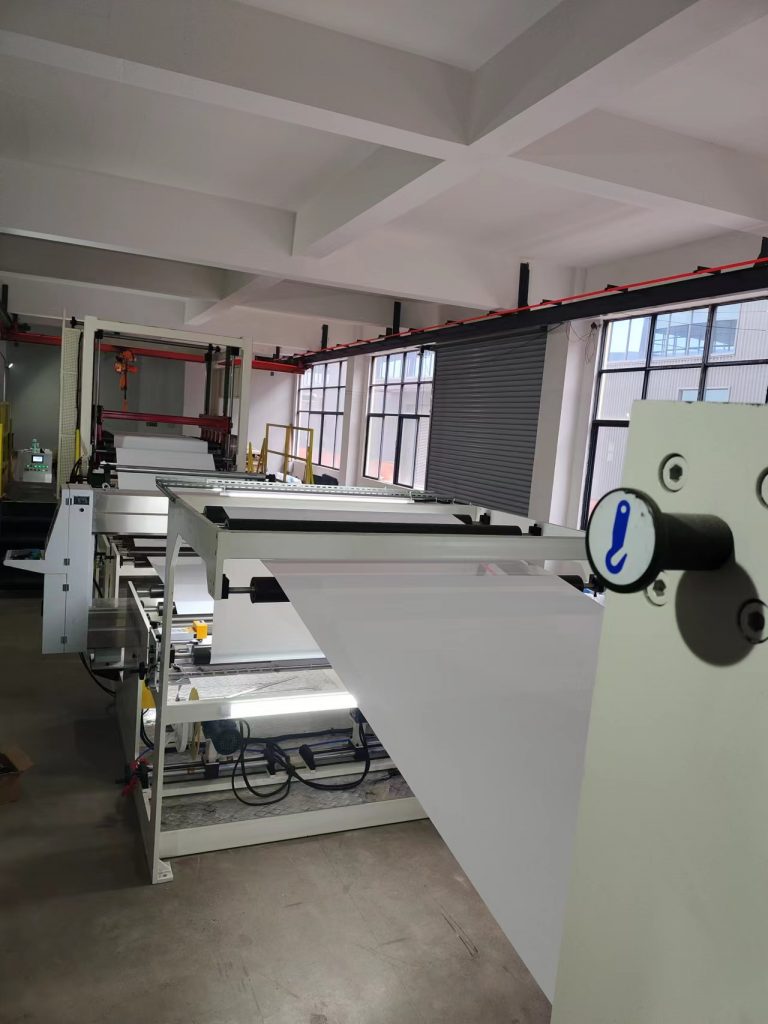

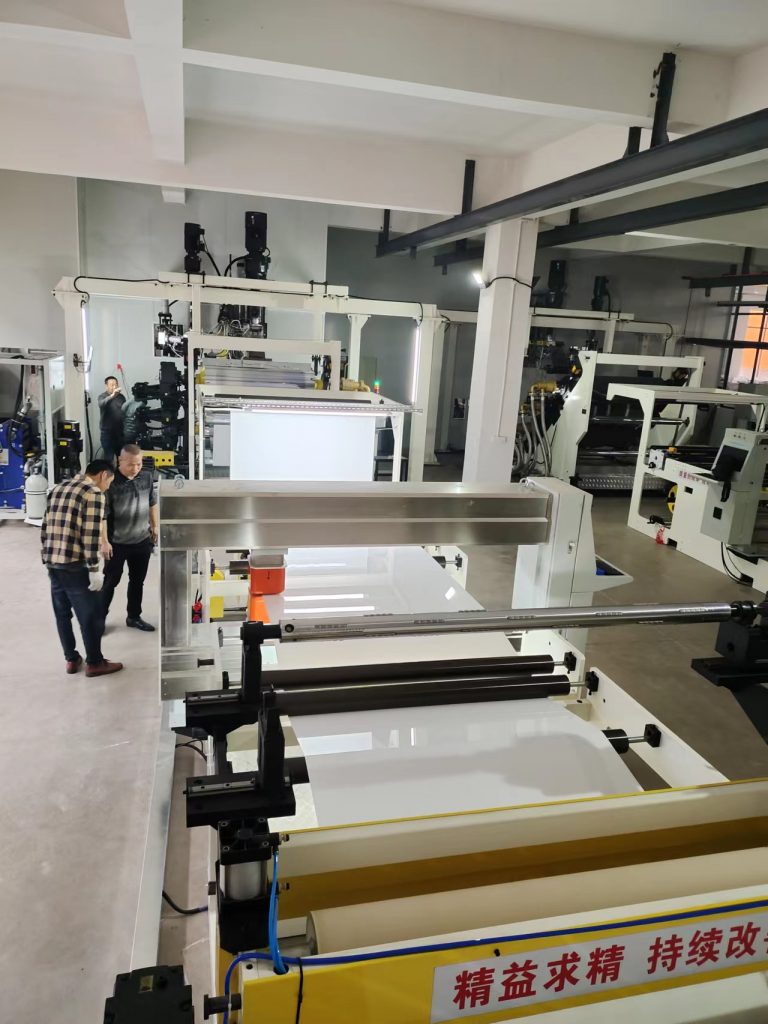

In April 2026, JWELL successfully delivered and commissioned a high-performance PETG Sheet Extrusion Line for a customer in China.
The production line is designed for manufacturing high-quality PETG sheets with excellent transparency, stable thickness control, and outstanding surface quality, tailored for the home-decor film segment.
With a production capacity of 850 kg/h and a product width of 1250 mm, this PETG sheet extrusion system provides an efficient and reliable solution for large-scale PETG decorative sheet production.
The line features a dual-extruder configuration — an 85 mm parallel twin-screw extruder combined with a 75 mm single-screw extruder — ensuring superior plasticizing, stable melt delivery, and precise gauge control. It is optimized for continuous industrial production, helping the customer improve manufacturing efficiency and meet increasing market demand for PETG decorative films, furniture lamination films and thermoforming sheets.
LOCATION [Country]
DELIVERY DATE [Month] 2026
STATUS Installed & Commissioned
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | PETG (Polyethylene Terephthalate Glycol) |
| Sheet Width | 1250 mm |
| Output Capacity | 850 kg/h |
| Film Thickness Range | 0.2 – 2.0 mm |
| Screw Diameter | Φ 85 mm (parallel twin-screw) + Φ 75 mm (single-screw) |
| Control System | Siemens S7 PLC + HMI |
| Drive System | ABB frequency inverter |
| Calendar Rolls | 3-roll horizontal calender, Vertical-type |
| Winder | Auto Winder |
| Voltage | 380V / 50Hz / 3Phase |
| Floor Space | Approx. 30 m × 6 m |
Key Features
✓ 1. HIGH OUTPUT PETG SHEET PRODUCTION The extrusion line is designed for high-efficiency PETG sheet manufacturing with a stable output of 850 kg/h, supporting large-scale production requirements.
✓ 2. EXCELLENT SHEET QUALITY Advanced extrusion technology ensures uniform thickness, smooth surface quality, excellent transparency, and consistent mechanical properties of PETG sheets — meeting the high-gloss surface requirements of decorative films.
✓ 3. DUAL-EXTRUDER CONFIGURATION The 85 mm parallel twin-screw extruder provides high-efficiency plasticizing, compounding and the ability to process recycled material, while the 75 mm single-screw extruder ensures stable, pulse-free melt delivery for consistent gauge — the optimal balance of throughput, quality and material flexibility.
✓ 4. PRECISION CONTROL SYSTEM The intelligent control system enables accurate temperature management, extrusion parameter adjustment, and synchronized operation of the complete production line.
✓ 5. RELIABLE LONG-TERM OPERATION The production line is engineered for continuous industrial running with high stability, easy maintenance, and reduced downtime.
Typical Applications
The PETG sheets produced by this extrusion line are widely used in:
Customer Benefits
The PETG sheet extrusion line helps the customer achieve:
Through advanced extrusion technology and professional engineering support, the customer obtained a complete PETG sheet production solution suitable for demanding industrial applications.
