Solution
PET bottle flakes in the process of recycling has strict requirements to the viscosity of the granules, Jwell has developed advanced strand cutting in water, simple operation, and convenient maintenance.
High efficient vacuum keeps the IV drop minor
Optimized screw design avoids yellowing
Streamline the process
Pre-drying-free technology saves energy up to 35%
Minimize the investment
Translucent plastic bottle on bottle flake or plastic bottle crushed
| Model | L/D | Screw Speed (rpm) | Capacity Range ( kg/hr) |
| CJWH75 | 40~48 | 300~500 | 300~500 |
| CJWH85 | 40~48 | 300~500 | 400~600 |
| CJWH95 | 40~48 | 300~500 | 1000~1200 |

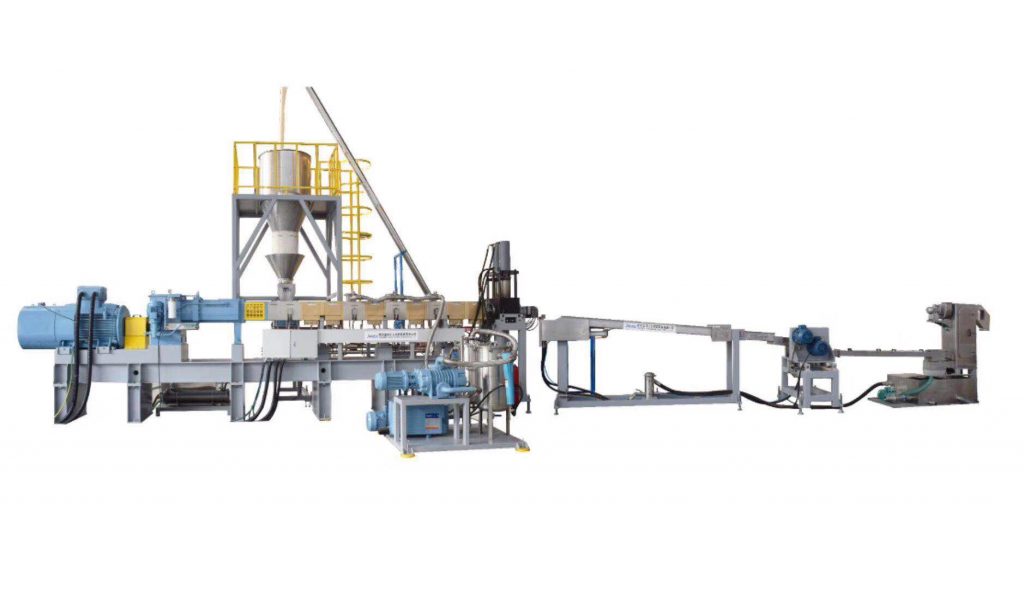

A PET bottle flake recycling pelletizing machine is a specialized system that converts waste PET plastic bottles into high-quality recycled pellets. Jwell’s advanced line adopts innovative pre-drying-free technology and underwater strand cutting process, producing uniform PET granules with minimal intrinsic viscosity (IV) drop and no yellowing, ideal for reprocessing into new plastic products.
Jwell offers three standard CJWH series models to meet different production scales: CJWH75 (300-500kg/hr capacity, 300-500rpm screw speed); CJWH85 (400-600kg/hr); and CJWH95 (1000-1200kg/hr). All models feature an optimized L/D ratio of 40-48, specifically designed for PET bottle flake recycling processes.
Jwell’s PET recycling lines feature industry-leading pre-drying-free technology that saves up to 35% energy consumption. The high-efficiency vacuum system ensures minimal IV drop during processing, while the optimized screw design prevents material yellowing. The streamlined process reduces equipment investment and operating costs significantly.
Our machines are specially designed for processing washed PET bottle flakes, including clear PET, green PET and blue PET. They can also handle PET scrap from film, sheet and injection molding processes. The system is compatible with both post-consumer and post-industrial PET waste materials.
Recycled PET pellets produced by our lines are widely used in manufacturing new PET bottles, food packaging, textile fibers, polyester filaments, plastic sheets, injection molded products and strapping bands. They meet the quality requirements for both food-contact and non-food applications worldwide.
Yes. Jwell provides fully customized solutions based on your raw material quality, production capacity and final product requirements. We can adjust screw configuration, vacuum system, pelletizing method (underwater strand cutting, water ring cutting), and add automatic feeding, sorting and packaging systems.
Jwell’s PET recycling lines adopt precise temperature control and intelligent pressure monitoring systems to ensure consistent processing conditions. The high-efficiency degassing system removes moisture and volatile impurities, while the advanced filtration system eliminates contaminants, producing clean, uniform pellets with stable physical properties.
The standard lead time is 45-60 working days after order confirmation. We have successfully delivered PET recycling projects to over 120 countries and regions worldwide. We provide full export services including professional packaging, freight booking, customs clearance support, and on-site installation & commissioning by experienced engineers.
Jwell offers a 1-year free warranty and lifelong technical support for all PET bottle flake recycling pelletizing machines. We provide detailed operation and maintenance manuals, 24/7 remote troubleshooting, on-site operator training, and global spare parts fast delivery to minimize production downtime.
With over 20 years of experience in plastic extrusion technology, Jwell is a global leader in PET recycling solutions. Our lines feature industry-leading energy efficiency, high-quality pellet production and low operating costs. We provide turnkey solutions from process design to after-sales service, helping you achieve profitable and sustainable plastic recycling.
