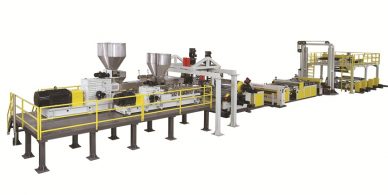

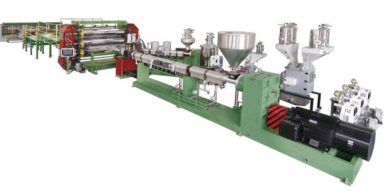

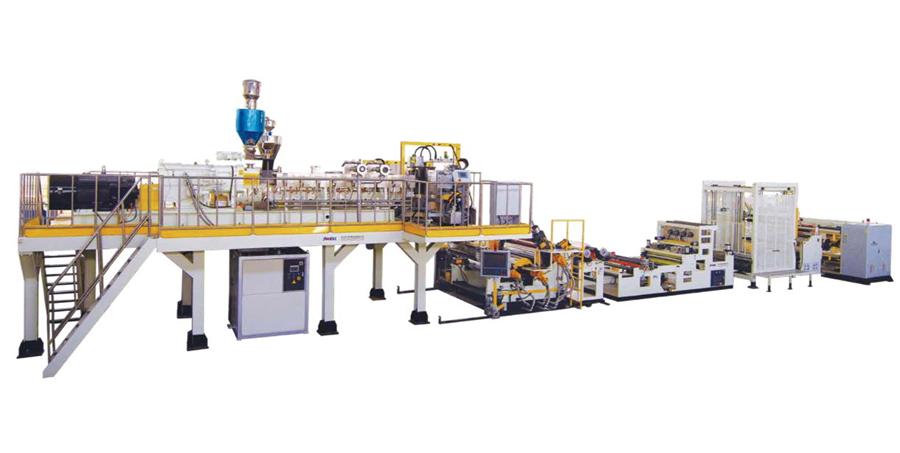

PLA sheet extrusion line

PLA (Polylactic Acid) is a novel biobased and renewable biodegradable material made from starch raw materials proposed by renewable plant resources such as corn and cassava.

The production process of PLA is non-polluting, and the product can be biodegraded to achieve circulation in nature, so it is an ideal green polymer material.

Products made of PLA have the advantage of biodegradability, gloss, good feel and heat resistance. It also has good antibacterial, flame retardant and UV resistance, so it can be used in rigid packaging of fruits, vegetables, eggs, cooked foods and baked goods. It can also be used for the packaging of sandwiches, biscuits and flowers, etc

Technical Specification

Model Extruder model Sheet thickness

(mm)

Main Motor Power

(kw)

Capacity

(kg/h)

Multi layer JWE75/40+JWE52/40-1000 0.15~1.5 132/55 500~600
Single layer JWE75/40-1000 0.15~1.5 160 450~550
High efficient JWE95/44+JWE65/44-1500 0.15~1.5 250/75 1000~1200

Used For
