High Filler Compounding Compounding

Feeding System

Volumetric feeding system

1.Weight the raw material separately according to the formula

2.Then put all the material into high speed mixer for 5~10minutes mixing

3.Discharge the material into spiral loader

4.Loading the material into the hopper of volumetric feeder

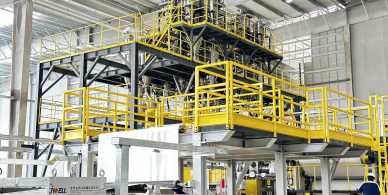

Loss-in-weight feeding system (automatically and higher accuracy)

1.Put the raw material into each tank on the ground.

2.Vacuum loader will convey each component into the storing silo.

3.The raw material will fall into the loss-in-weight feeder automatically. The feeding system will feed the material separately into extruder according to your formula setting one the HMI.



Technical Specification

Model L/D Screw Speed (rpm) Capacity Range ( kg/hr)
CJWV77 36~56 400~900 2000~3000
CJWH95 36~56 400~900 3000~3500

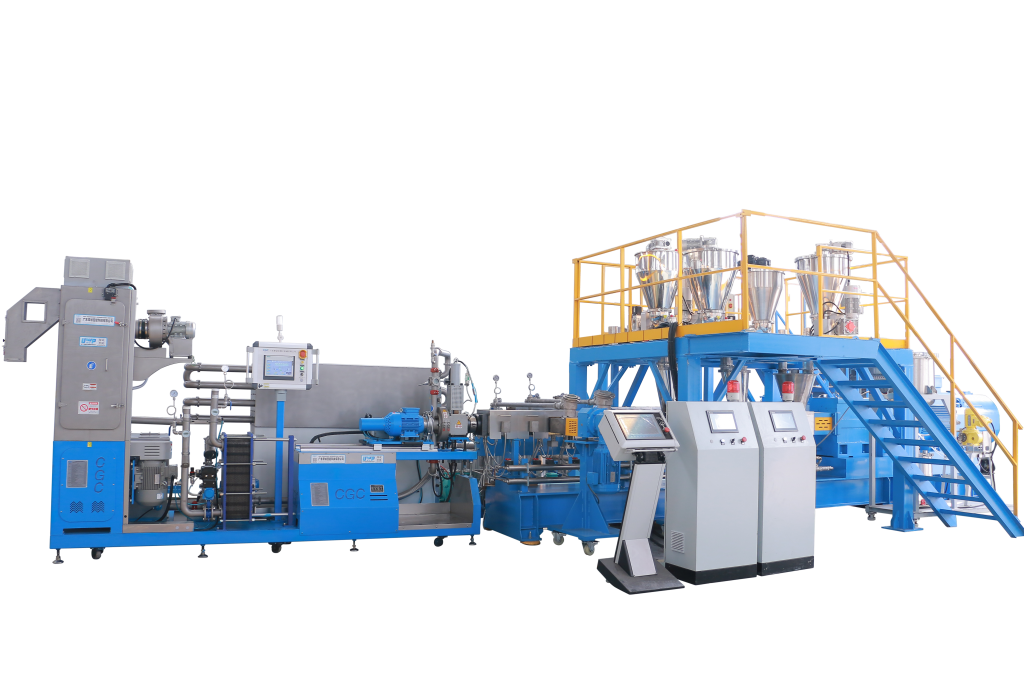

Machine Type (CJWV77 with water ring cutting system)

Machine Type (CJWH95 with water ring cutting system)

Jwell Trusted By

Why Choose Jwell

  • High Quality Jwell machine barrels , screws , T-die and roller all by ourselves , we control the machine quality from drawing design to final installation .
  • Save Your 30% Money Comparable to the quality of Top Germany’s extruders , reasonable affordable prices . High effective single screw extruders and twin screw extruders .
  • Global Sales Service Jwell has sales office in Turkey , Vietnam , Thailand , Brazil , Canada , there are over 500 plastic engineers serve Jwell customer all over the world .
  • On Time Delivery Of Spare Parts We have almost all key parts of our products in stock and We remotely monitor the cloud status of the machine and provide timely maintenance suggestions ,we promise your extruder will never stop running .

Get A Free Quote
