Solution

Biodegradable Plastic Compounding

Biodegradable Plastic: PPC, PABT, PLA, PBS, PCL, TPS, PVA, PVOH

1）Melt PBAT compounding with PLA or PPC

The melt PBAT material with temperature 240℃ is fed into twin screw extruder by a melt pump, and add the PLA or PPC pellets and chain extender additive into extruder by the loss-in-weight feeder. This is direct compounding which can save 40% energy and better dispersion, comparing with PBAT pellet compounding with PLA or PPC

2）PLA/PBS compounding with starch powder

  • Premix and long L/D for better dispersion
  • Special feeder for anti-bridge
  • Air cooling die face cutting for PLA base, and air cooling strand pelletizing for PBS base

Technical Specification

Model L/D Screw Speed (rpm) Motor Power (KW) Specific Torque( T/A3) Capacity Range ( kg/hr)
CJWH-65 40～56 300 75 9 240
CJWH-75 40～56 300 132 9 440
CJWH-95 40～56 300 250 9 820
CJWS-75 40～56 300 160 11 550
CJWS-95 40～56 300 315 11 1060

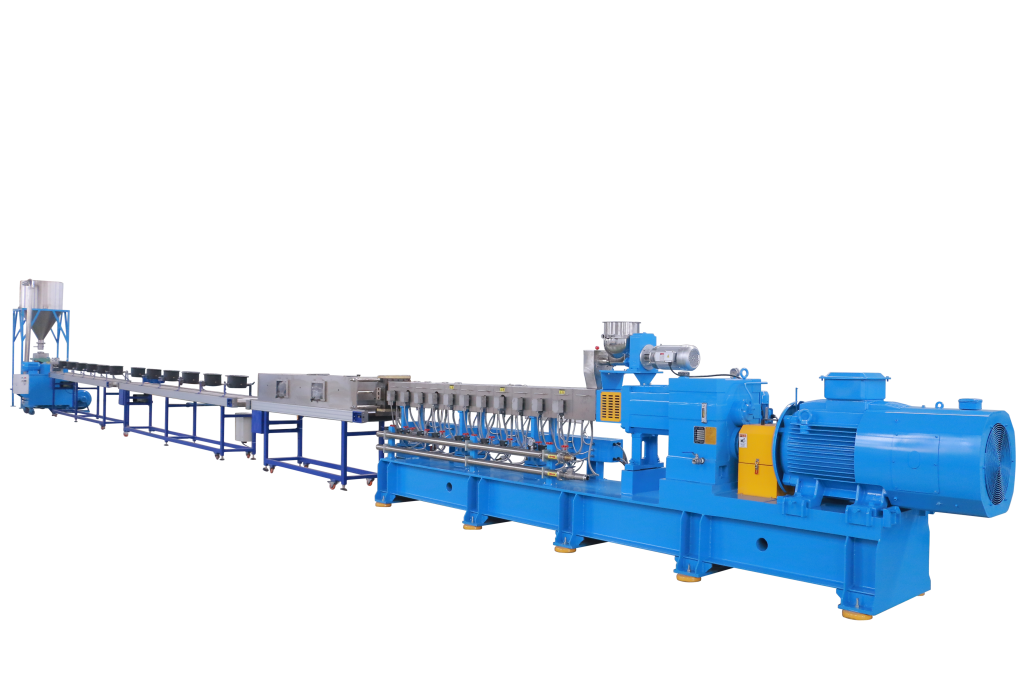

Machine Type (CJWH95 PBAT + starch 1000 kg/h Portugal case)

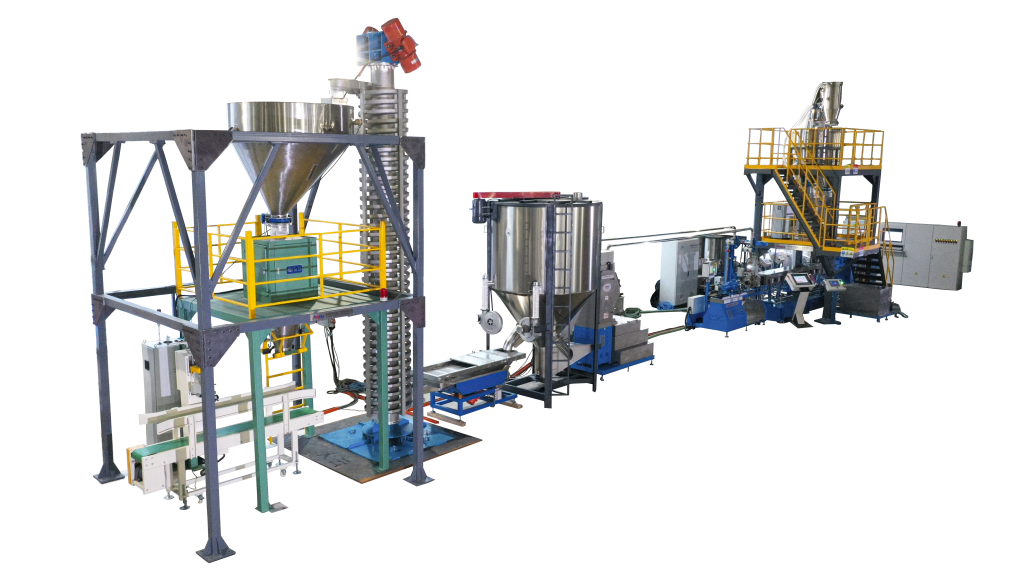

Machine Type (CJWH75 PLA/PBAT/PBS + starch (30%) 500 kg/h)
