Solution
Thermoplastic are the most potential new material at present, combining both advantages of plastic and rubber, which can be used in automobile, electronics, engineering and medical, etc.
| Model | L/D | Screw Speed (rpm) | Capacity Range ( kg/hr) |
| CJWH65 | 48~64 | 300~600 | 300~500 |
| CJWH75 | 48~64 | 300~600 | 500~1000 |
| CJWH95 | 48~64 | 300~600 | 1000~1500 |

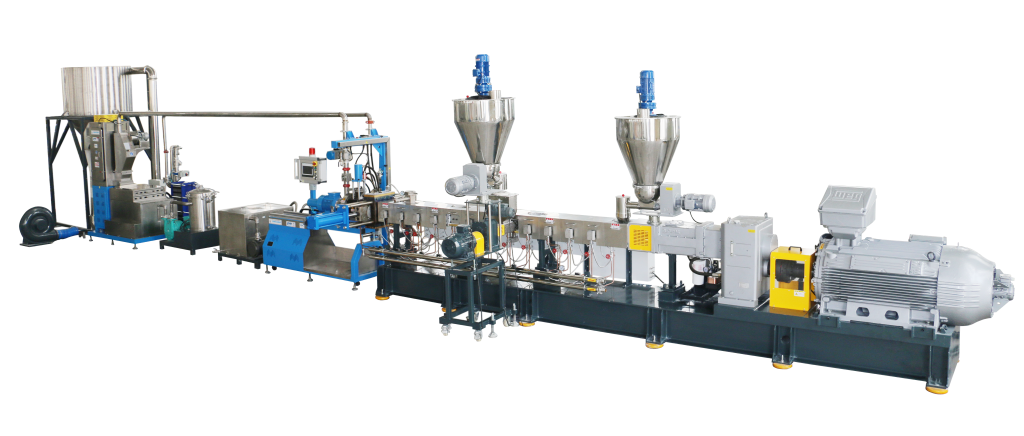

A TPE compounding line is a high-performance twin-screw extrusion system for manufacturing thermoplastic elastomer materials. TPE is one of the most promising new materials today, combining the processing advantages of plastics and the elastic properties of rubber. Jwell’s CJWH series lines produce high-quality TPE compounds with excellent flexibility, durability and recyclability for various industrial applications.
Jwell offers three standard CJWH series models to meet different production scales: CJWH65 (300-500kg/hr capacity, 300-600rpm screw speed); CJWH75 (500-1000kg/hr); and CJWH95 (1000-1500kg/hr). All models feature an optimized L/D ratio of 48-64, specifically designed for TPE compounding processes.
Jwell’s lines are compatible with all major TPE families: TPE-S (styrenic), TPE-O (olefinic), TPE-V (vulcanizates), TPE-U (urethanes), TPE-E (esters) and TPE-A (amides). We also have proven experience in producing medical-grade, food-grade and flame-retardant TPE compounds with strict quality control.
Jwell’s lines feature high-torque gearboxes and specially designed screw profiles for gentle yet thorough mixing of TPE formulations. The precise temperature control system prevents material degradation, while the efficient degassing system ensures low volatile content. The modular design allows easy process adjustment for different TPE types.
TPE compounds are widely used in automotive parts (seals, gaskets, interior trims), electronic products (cables, connectors, grips), medical devices (tubing, seals, surgical instruments), engineering components, consumer goods, footwear and sports equipment, providing excellent elasticity and durability.
Yes. Jwell provides fully customized solutions based on your target TPE type, formulation and production capacity. We can adjust screw configuration, feeding system, degassing unit, pelletizing system (strand, underwater or water ring) and automation level to meet your specific process needs.
Jwell’s TPE lines adopt advanced servo drive and intelligent control systems, achieving stable continuous production with minimal material waste. The online monitoring system ensures real-time control of melt temperature, pressure and viscosity, guaranteeing consistent hardness, elasticity and mechanical properties across production batches.
The standard lead time is 50-65 working days after order confirmation. We have successfully delivered TPE compounding projects to over 120 countries and regions worldwide. We provide full export services including professional packaging, freight booking, customs clearance support, and on-site installation & commissioning by certified engineers.
Jwell offers a 1-year free warranty and lifelong technical support for all TPE compounding lines. We provide detailed operation and maintenance manuals, 24/7 remote troubleshooting, on-site operator training, and global spare parts fast delivery to minimize production downtime and ensure long-term stable operation.

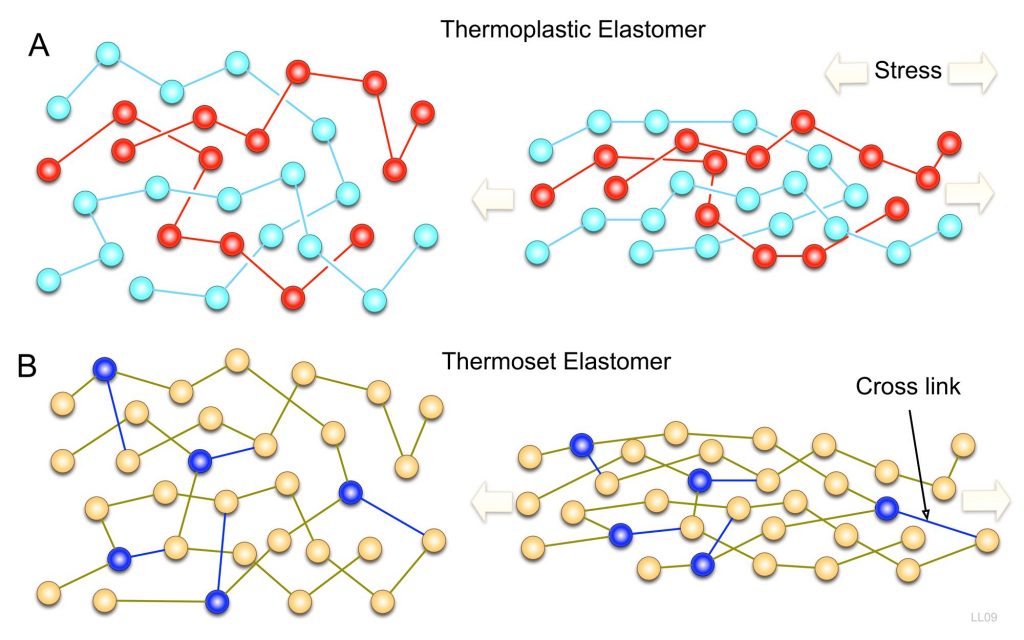

TPE combines the best of both worlds: it has the elasticity and resilience of rubber without the need for vulcanization, and can be processed like thermoplastics using injection molding, extrusion and blow molding. TPE is 100% recyclable, offers faster processing times, lower production costs and excellent design flexibility compared to traditional materials.
