From extruder to automatic packaging — Jwell delivers a fully integrated SPC flooring production line, tailored to your capacity, automation level, and budget.
SPC (Stone Plastic Composite) flooring is revolutionizing the resilient flooring market with its 100% waterproof core, zero-formaldehyde composition, and superior dimensional stability. Jwell Machinery, with over 30 years of extrusion expertise, provides a complete turnkey SPC flooring extrusion line that covers every step of production — from raw material feeding to finished, packaged floor tiles ready for export.
Our turnkey approach means you receive a single integrated solution: process design, equipment manufacturing, on-site installation, commissioning, operator training, and lifetime technical support. No need to source from multiple vendors — Jwell is your single point of accountability.
| Model | Products Width
(mm) |
Products Thickness
(mm) |
Main Power
(kw) |
Capacity
(kg/h) |
| SJZ80/156 | 1050 | 3～8 | 75 | 400～500 |
| SJZ92/188 | 1220 | 3～8 | 110 | 800~1000 |
| SJZ110/220 | 1220 | 3～8 | 160 | 1200~1400 |
Jwell understands that every customer has unique operating conditions. We offer three automation configurations so you can invest based on your labor cost, target output, and ROI goals.
Entry
Best for startups & emerging markets
Best for established producers
Best for industrial-scale & export
Jwell produces screws, barrels, T-dies, and rollers in our own facilities — full quality control from design drawing to final commissioning.
Comparable quality to top German extruders at a far more accessible price point, with 25–30% total cost-of-ownership savings.
Sales & service offices in Turkey, Vietnam, Thailand, Brazil, Canada — on-site installation and rapid response worldwide.
Real-time machine status tracking and same-day spare-part dispatch — your line never stops running.
Zero formaldehyde, zero benzene, 100% recyclable, B1 fire rating — meets the strictest EU and US environmental standards.
One project manager, one contract, one delivery — Jwell handles process, equipment, installation, training, and lifetime support.
Answers to the most common questions from SPC flooring manufacturers worldwide.

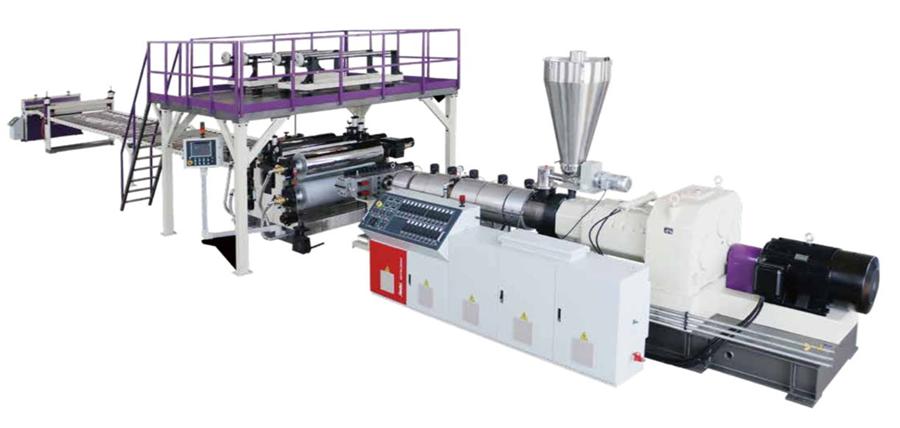

A turnkey SPC flooring extrusion line from Jwell is a complete, ready-to-run production plant that covers every step of SPC floor manufacturing — from raw PVC powder feeding, twin-screw extrusion, four-roll calendering, UV coating, slotting & cutting, IXPE silent pad lamination, to automatic stacking and packaging. Jwell designs, manufactures, installs, and commissions the entire line, so customers can start production immediately after utility hookup.
Capacity depends on the model: SJZ80/156 produces up to 500 kg/h, SJZ92/188 reaches 800–1,000 kg/h, and SJZ110/220 delivers 1,200–1,400 kg/h. The 110/220 dual-line configuration commonly achieves 7,000–8,000 m² of finished SPC flooring per day.
Yes. Jwell offers three automation tiers: (1) Semi-automatic line with manual cutting and packaging for budget-sensitive startups; (2) Standard automatic line with robotic cutting, IXPE lamination, and palletizing; (3) Full smart factory line with AGV transfer, vision inspection, and ERP integration. Our engineering team matches the configuration to your labor cost, target output, and ROI expectations.
Jwell provides a 12-month whole-machine warranty plus lifetime technical support. Key spare parts (screws, barrels, gearboxes, electrical components) are kept in stock for same-day dispatch. Our cloud-monitoring system tracks machine status in real time, and over 500 engineers are deployed across Turkey, Vietnam, Thailand, Brazil, and Canada for on-site installation, training, and emergency service.

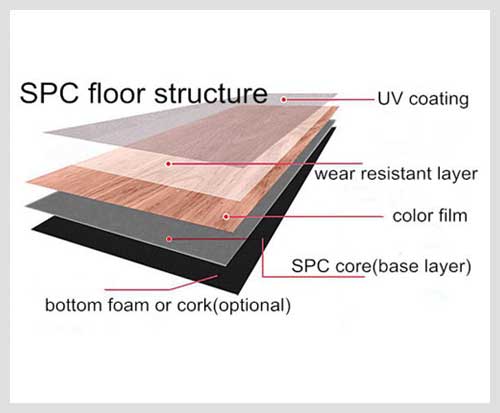

The line processes virgin PVC resin, calcium carbonate (CaCO3) filler, stabilizers, impact modifiers, and lubricants to produce SPC core sheets. It also handles PVC color film, PVC wear layer, and IXPE acoustic underlay. Our R&D team can share optimized formulations based on your target cost and performance (e.g., 4 mm residential vs. 6 mm commercial grade).
Product width ranges from 1,050 mm to 1,220 mm, and thickness from 3 mm to 8 mm — covering the most popular residential (3.5–4.5 mm) and commercial (5–8 mm) SPC specifications. Tooling change-over for different widths typically takes 2–4 hours.
Quality is controlled at four stages: (1) Inline melt pressure and temperature sensors; (2) Automatic thickness gauging with closed-loop calender adjustment; (3) Vision-based surface defect detection; (4) Finished-board density and dimensional inspection. Jwell’s in-house manufactured screws, barrels, T-dies, and rollers guarantee consistent output batch after batch.
Standard delivery is 90–120 days after order confirmation. On-site installation and commissioning typically takes 30–45 days, including operator training. Jwell dispatches a dedicated engineer team for installation, and our project manager provides weekly progress updates throughout.
Yes. The Jwell SPC line produces zero-formaldehyde, zero-benzene flooring that is 100% recyclable. The hot-press lamination process uses no glue, eliminating VOC emissions. The fire rating reaches B1, and the product is water-proof, termite-proof, and suitable for underfloor heating systems.
A complete turnkey SPC line typically ranges from USD800,000 to USD 1,500,000 depending on capacity, automation level, and optional modules (UV, IXPE, packaging). Compared with European equivalents of similar quality, Jwell delivers 25–30% cost savings while maintaining comparable performance and longer equipment life.
