Solution

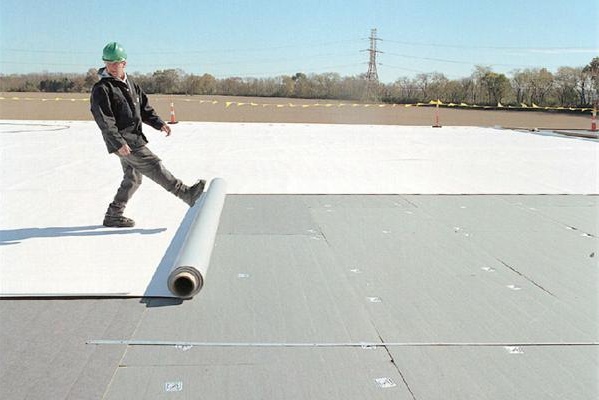

PVC waterproof membrane sheet is widely used for house waterproof industry, architecture, and basement, architecture waterproof project in reservoir, dam, road tunnel, railway tunnel, bomb shelter.
| Model | SJZ80/156+SJZ92/188 | SJP130/36+SJZ92/188 | JWS150-JWS120 |
| Products Width(mm) | 0.5～3 | 0.5～3 | 1~2 |
| Products Thickness(mm) | 1200～2000 | 2000 | 2000 |
| Capacity( kg/h) | 800～900 | 1200～1300 | 1000~1100 |

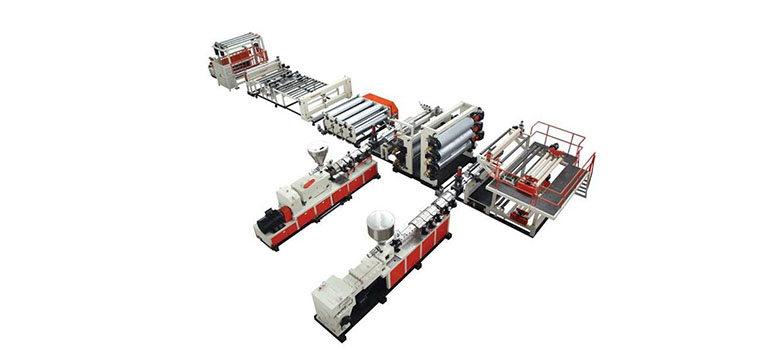

A PVC waterproof membrane extrusion line is a professional production system for manufacturing polyvinyl chloride (PVC) waterproofing sheets. Jwell provides multiple configurations including conical twin-screw and parallel twin-screw extruders, capable of producing homogeneous, reinforced and laminated PVC waterproof membranes with excellent waterproof, weather-resistant and chemical-resistant properties for various construction projects.
Jwell offers three mainstream models to meet different production scales: SJZ80/156+SJZ92/188 (800-900kg/h, 1200-2000mm width, 0.5-3mm thickness); SJP130/36+SJZ92/188 (1200-1300kg/h, 2000mm width, 0.5-3mm thickness); JWS150-JWS120 (1000-1100kg/h, 2000mm width, 1-2mm thickness).
Jwell’s lines adopt specialized screw designs optimized for PVC processing, ensuring uniform plasticization and stable melt quality. The conical twin-screw extruder provides high torque and low energy consumption, while the parallel twin-screw configuration delivers higher output. The integrated online thickness control system guarantees precise product dimensions with minimal tolerance.
Our lines are specially designed for PVC resin processing, compatible with both virgin and recycled PVC materials. They support the addition of various functional additives including plasticizers, stabilizers, UV absorbers, flame retardants and colorants, allowing production of PVC membranes that meet different regional environmental and performance standards.
PVC waterproof membranes produced by Jwell lines are widely used in residential and commercial building roofs, basements, underground garages, reservoirs, dams, road tunnels, railway tunnels and bomb shelters. They are suitable for both new construction and renovation waterproofing projects in different climate zones worldwide.
Yes. Jwell provides fully customized solutions based on your production requirements and local market needs. We can adjust product width (up to 3000mm), thickness range, extrusion configuration, and add functions such as polyester fabric reinforcement, surface lamination, automatic cutting, rolling and packaging systems.
Jwell’s PVC lines adopt intelligent temperature control and servo drive systems, achieving stable continuous production with high speed. The online monitoring system ensures real-time control of thickness, width and surface quality, reducing scrap rate to less than 3% and guaranteeing consistent performance across production batches.
The standard lead time is 50-65 working days after order confirmation. We have successfully delivered PVC waterproof membrane projects to over 120 countries and regions. We provide full export services including professional packaging, freight booking, customs clearance support, and on-site installation & commissioning by experienced engineers.
Jwell offers a 1-year free warranty and lifelong technical support for all PVC waterproof membrane extrusion lines. We provide detailed operation and maintenance manuals, 24/7 remote troubleshooting, on-site operator training, and global spare parts fast delivery to minimize production downtime.
PVC waterproof membranes offer excellent durability (service life over 25 years), superior root resistance, good low-temperature flexibility and strong chemical resistance. They are easy to install with hot air welding, provide seamless waterproof joints, and are cost-effective for large-scale construction projects.
