Solution

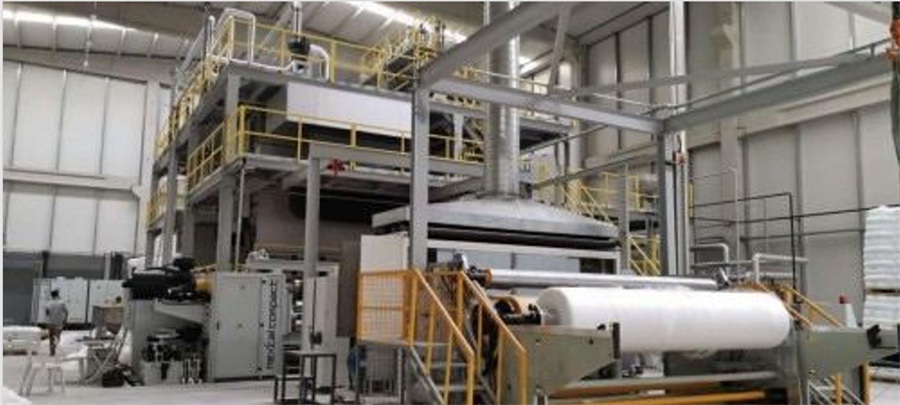

Spunbond Machine

Jwell develop high capacity Spunbond Machine and provides turn-key solutions for melt blown fabric production line. Help you to produce high quality Spunbond fabric.

Technical Specification

Single Beam ( S ) Machine Data Specification
Model JWS1600 JWS2400 JWS3200
Effective Width(mm) 1600 2400 3200
Weight Range( g/m2) 10~120 10~120 10~120
Capacity (Ton/day) 4~6 5~7 8~10
Machine Speed ≤150 ≤150 ≤150
Machine Size ( L*W*H,m) 18*8*12 18*10*12 18*15*12
Double beam (SS) Machine Data Specification
Model JWSS1600 JWSS2400 JWSS3200
Effective Width(mm) 1600 2400 3200
Weight Range( g/m2) 10~120 10~120 10~120
Capacity (Ton/day) 8～10.5 10～15 13～20
Machine Speed ≤300 ≤300 ≤300
Machine Size ( L*W*H,m) 30*10*12 30*12*12 30*15*12
Three Beam (SSS) Machine Data Specification
Model JWSSS1600 JWSSS2400 JWSSS3200
Effective Width(mm) 1600 2400 3200
Weight Range( g/m2) 12～120 12~120 12~120
Capacity (Ton/day) 12～17 16～21 24～29
Machine Speed ≤400 ≤400 ≤400
Machine Size ( L*W*H,m) 30*17*12 30*24*12 30*31*12

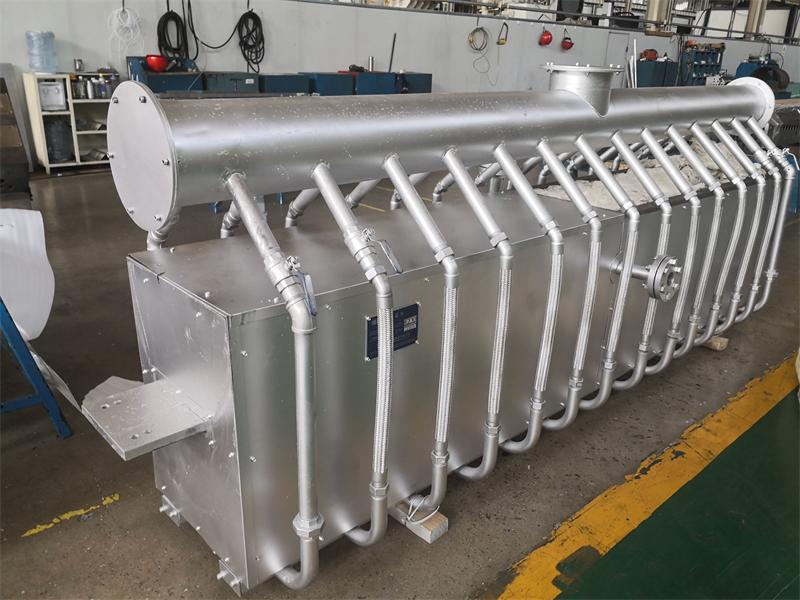

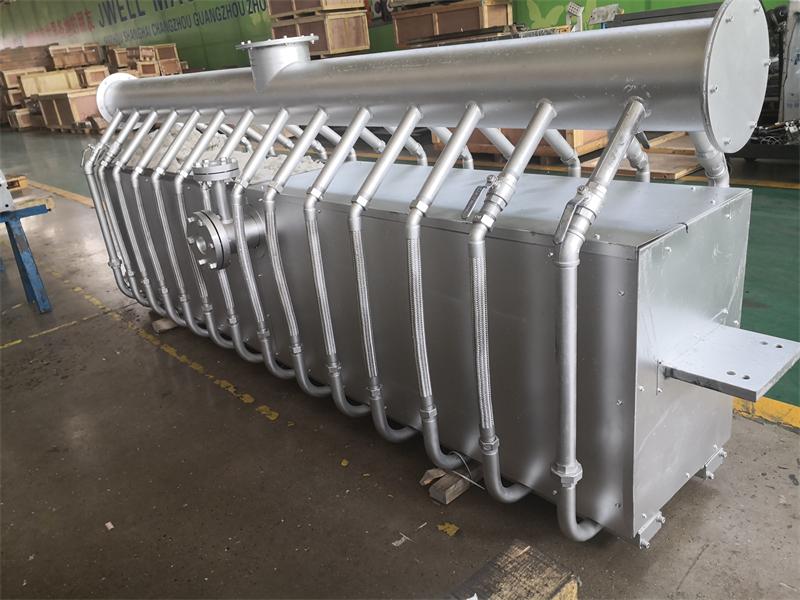

Equipment Details

Jwell Trusted By

Why Choose Jwell

  • High Quality Jwell machine barrels , screws , T-die and roller all by ourselves , we control the machine quality from drawing design to final installation .
  • Save Your 30% Money Comparable to the quality of Top Germany’s extruders , reasonable affordable prices . High effective single screw extruders and twin screw extruders .
  • Global Sales Service Jwell has sales office in Turkey , Vietnam , Thailand , Brazil , Canada , there are over 500 plastic engineers serve Jwell customer all over the world .
  • On Time Delivery Of Spare Parts We have almost all key parts of our products in stock and We remotely monitor the cloud status of the machine and provide timely maintenance suggestions ,we promise your extruder will never stop running .
